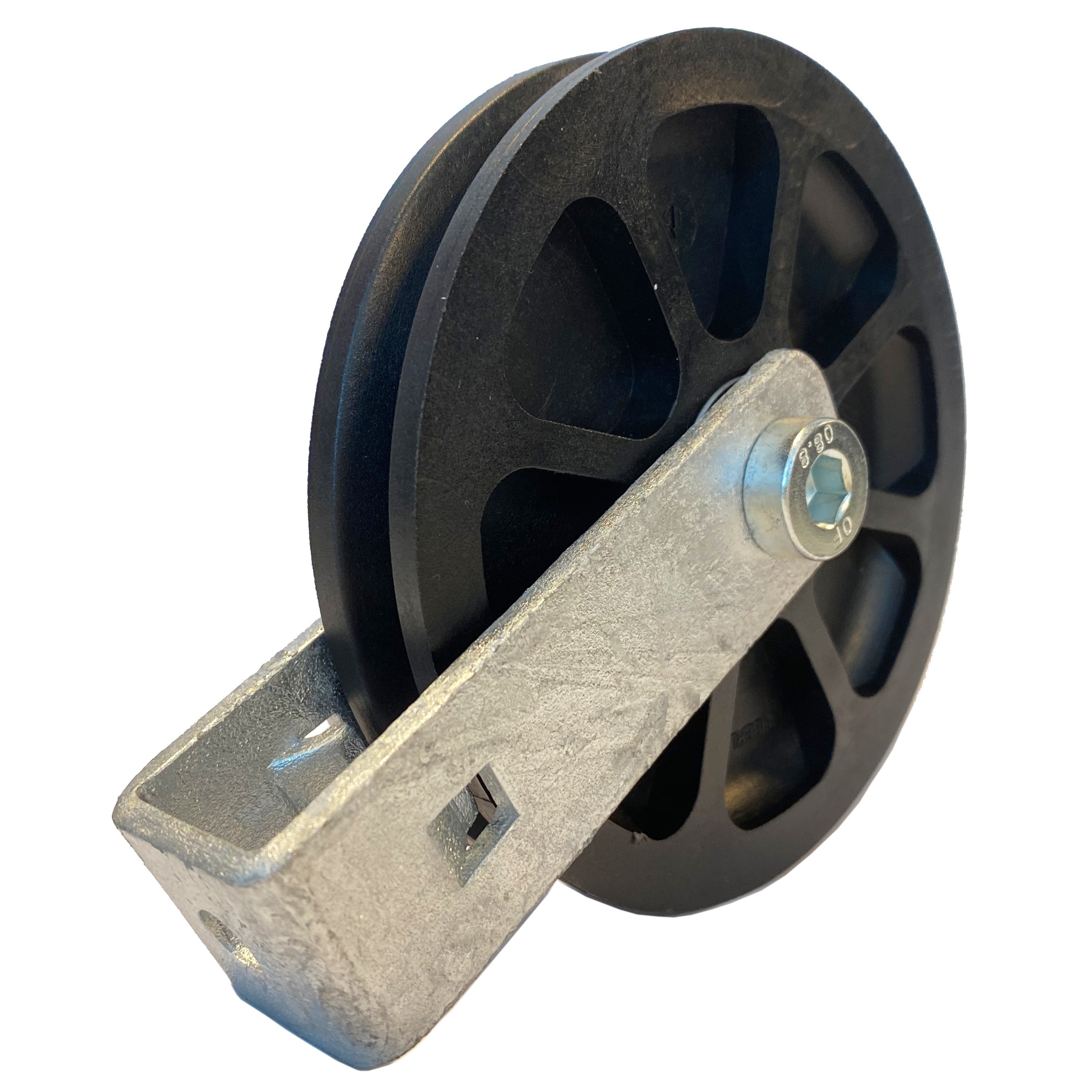

Cable pulley 100 with clamp - Wires until 9 mm
Product information "Cable pulley 100 with clamp - Wires until 9 mm"
Durch zwei verbaute Kugellager ist die 100 mm Umlenkrolle besonders sicher auf der Achse geführt und hat eine hohe Stabilität bei Scherlasten.
Der Haltebügel aus verzinktem Stahl lässt sich mit einer M8- Schraube an Ihrer Konstruktion befestigen. Der Haltebügel lässt sich auch von der Umlenkrolle lösen um auch in schwer zugänglichen Einbausituationen eine möglichst einfache Montage zu ermöglichen.
- Schlagfeste Umlenkrolle
- Haltebügel aus verzinktem Stahl
- zwei Kugellager
- Traglast: bis zu 350 kg
- Made in Germany

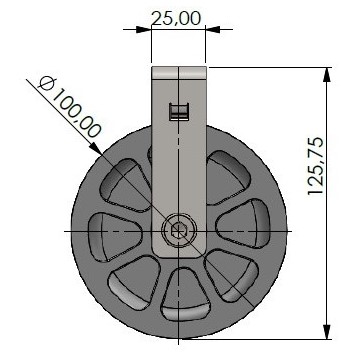

- Außendurchmesser: 100 mm
- Gesamthöhe: 125,75 mm
- Gesamtbreite: 20 mm
- Seildurchmesser: bis Ø 9 mm
- Befestigung mit M8-Schraube
